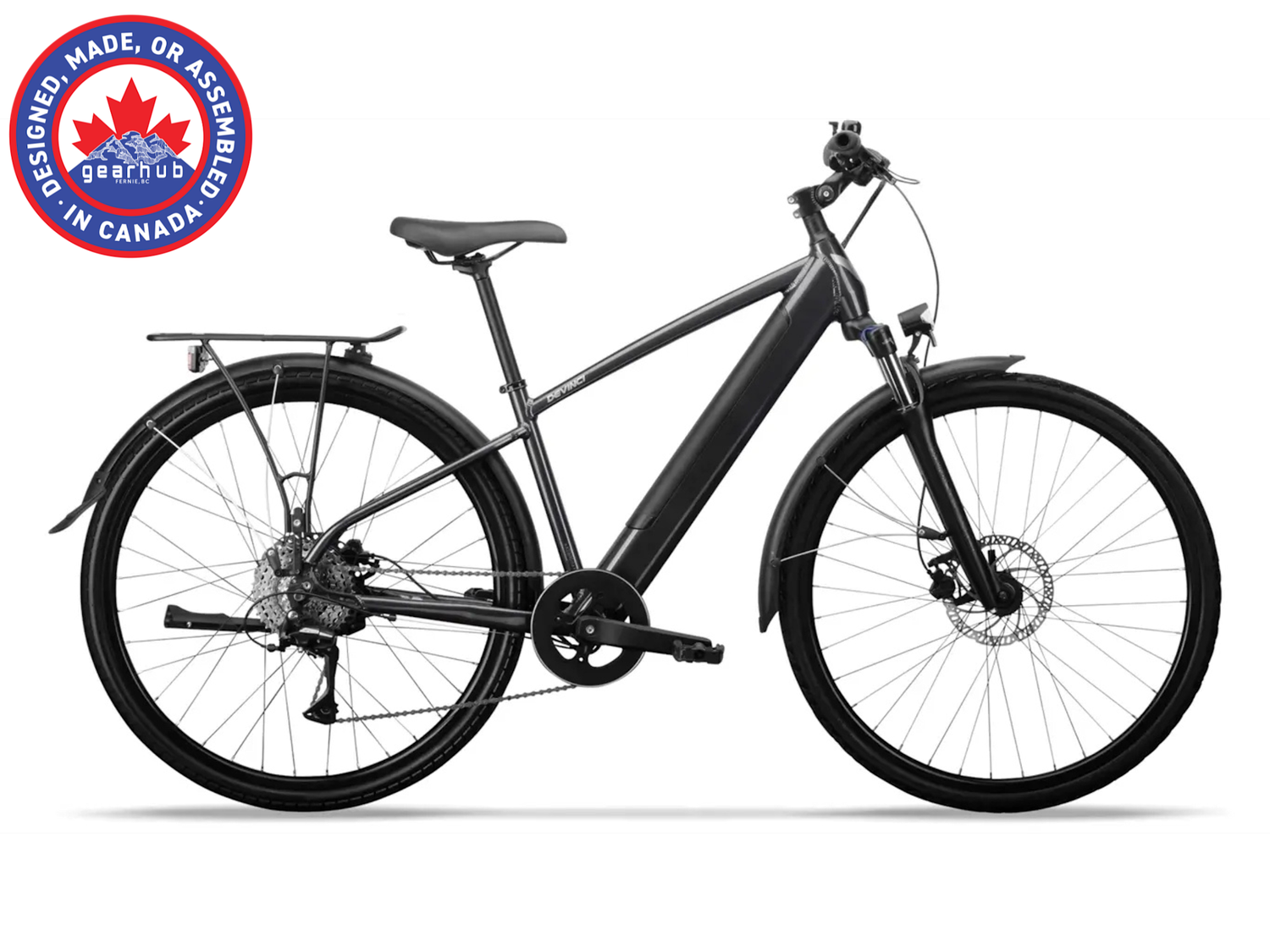

Devinci, E-Milano HD tus

UNITING FORM, FUNCTION, AND PERFORMANCE FOR

UNBEATABLE VALUE - Designed in Canada

The E-Milano HD is the perfect balance of function, form and value.  Let’s start with function: it comes ready to roll, with fenders, lights, a rack and a solid, low-profile kickstand. Form comes via a sleek hub drive and internal battery that deliver clean lines. The E-Milano’s premium ride experience challenges the competition, regardless of price point, giving you more bike for less. Now that’s value.

Tech Specs:

FRAME-Aluminum Optimum S03

HEADSET-FSA Orbit | C40 | Integrated

SEAT CLAMP-Alloy | 31.8mm

SUSPENSION FORK-SR Suntour NEX E25 HLO-DS | 75mm

HANDLEBAR-Devinci | B:25.4mm | R:20mm | W:640mm

STEM-Devinci Adjustable | B:25.4mm | 0-60°

SADDLE-Devinci

SEATPOST-Devinci | 27.2mm

GRIPS-Velo Ergo Comfort

FRONT BRAKE-Tektro HD-M285 | Hydraulic

REAR BRAKE-Tektro HD-M285 | Hydraulic

ROTORS-Stainless | 180mm

REAR DERAILLEUR-Shimano Altus M310 | 8s

REAR SHIFTER-Shimano M315 | 8s

CRANKARM-Alloy

CHAINRING-42T | alloy chainguard

BOTTOM BRACKET-73mm LDS Torque Sensor BBTS1SD

CASSETTE-Sunrace | 8s | 11-40T

CHAIN-KMC Z | 8s

CHAINGUARD-Alloy

FRONT RIM-V2 Comp db | 21mm inner

FRONT HUB-Formula Disc | QR 9x100mm

REAR HUB-SR Suntour hub drive 36V/250W | DC brushless type

REAR RIM-V2 Comp db | 21mm inner

SPOKES-Stainless 14G Frt | 13G Rear

TIRES-Kenda K1170 | 700x42c

COMPUTER-HWT LED Display

DRIVE UNIT-SR Suntour 250W, 60Nm Hub Drive System

BATTERY-36V | 504WH

PEDALS-Wellgo C246

FRONT FENDER-Assorted

REAR FENDER-Assorted

KICKSTAND-Alloy DirectMount

Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.



Technologies:



THE JOY OF RIDING WITHOUT LIMITS

CHOOSE THE E-MILANO HD TODAY

Get ready to revolutionize your commute with the all-new E-Milano Hub Drive – the eBike that's designed to take you from A to B without breaking the bank. We've crafted the perfect balance of function, form, and unmatched value.



INTUITIVE REMOTE & DISPLAY UNIT

The Remote & Display unit located on the left side of the handlebar lets you navigate through the different assistance mode while displaying battery autonomy, speed, cadence, distance travelled, and more.



POWERFULL HUB DRIVE

The SR Suntour R250 HP hub drive provides 250W of power and 60Nm of torque enabling you to ride without limits.



SAFE POWER

504WH BATTERY

The aluminum optimum S03 frame of the E-Milano HD contains a 504Wh HWT battery. The battery is removable and is kept safe in place thanks to a key lock.



BATTERY RANGE

95 KM OF RANGE

Under ideal conditions and with a full charge, the 504Wh HWT battery will provide you with approximately 95 km of range. Various factors, including weather, riding surface, terrain type, wind conditions, and the assist modes you are using, all impact the energy consumption of the electric system.



A HASSLE-FREE CHOICE

FULLY EQUIPPED

Be prepared for anything with an all-situation equipment package. No need to spend extra time and money on an excessive list of accessories. The E-Milano HD comes fully prepared right out of the box. A sturdy rear rack, integrated lights, front and rear fenders, and a solid kickstand. All contribute to making the E-Milano HD a hassle-free choice.



PRIORITIES: COMFORT & SAFETY

HYDRAULIC DISC BRAKES

The powerful and confidence inspiring Tektro HD-M285 hydraulic disc brakes are realiable and offer enough power to stop on a dime.



WHO'S THE E-MILANO HD FOR?

The E-Milano HD is designed for cyclists seeking a reliable, powerful, and versatile city commuting experience or simply, a fully equipped leisure bike for weekend jaunts. Whether navigating through town avenues or enjoying the fresh air, the E-Milano HD caters to those who prioritize performance, ease of use, and cleaner-future commuting solutions.



SR SUNTOUR HUB MOTOR

A powerful and lightweight SR Suntour 60 Nm rear hub makes weekend excursions and city commutes a breeze. This is power, refined.



FULLY INTEGRATED 504Wh BATTERY

Offering a range of approximatively 95 km.



CLASS 1

Class 1 electric bikes are e-bikes that are pedal-assist only, with no throttle, and have a maximum assisted speed of 32 kilometers per hour.



FULLY LOADED

High quality rack, fenders, lights, and kickstand are standard equipment. No need to worry about setup, just ride.



HYDRAULIC DISC BRAKES

Delivers reliably smooth, powerful braking in all weather.



INTUITIVE POWER SWITCH

Intuitively switch from walk mode to full speed with user-friendly plus and minus buttons. Experience our simplest power system yet.



BUILT-IN LIGHTS

Stay safe and be visible at all times with built-in lights.



ADJUSTABLE STEM

Maximize your comfort with a stem that offers multiple degrees of adjustability.



SUSPENSION FORK

Improves comfort and control on varied surfaces.



INTERNAL CABLE ROUTING

Uses internal routing to keep debris out and for longer-lasting, silky-smooth shifting.



MAXIMUM TIRE CLEARANCE

Ample clearance for tires up to 700c x 50 mm providing a smoother, more efficient ride on a wider variety of surfaces.
