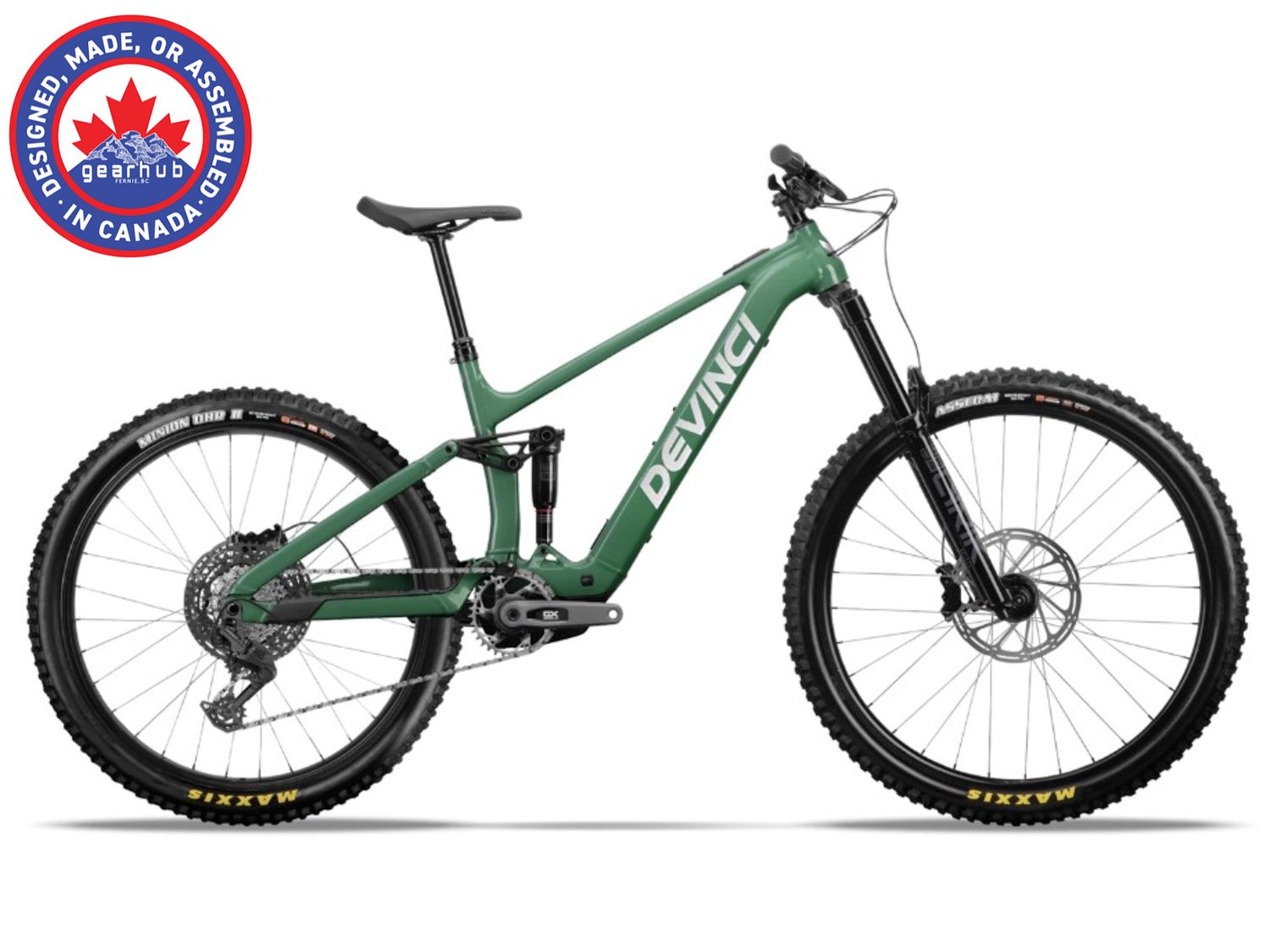

Devinci, E-Troy Lite Bosch SX Smart MX Eagle 70
SKU FE24072263
$6 999.00
Sold out
Color
Size
GETTING YOU MORE ON EVERY RIDE - Handcrafted in Canada
Climb in a flash and descend in style with this next generation rig that combines Bosch wattage with the finesse and feel Devinci trail bikes are known for. You’ll sense the power delivered by a Bosch system that’s compatible with a range extender for longer days. More than anything, you’ll notice how subtle the difference is on the way down. An agile made-in-Canada chassis with mixed wheels and suspension kinematics brings the spirit of a Devinci trail bike to the world of power assist. The E-Troy Lite gives you more on every ride.
This item is online-only. Online-only items (shipped directly from our distributor) and in-store items must be ordered separately. Please place two orders, or contact us and we'll be happy to help.
Show 1 more location
Show availability at pickup locations
Sold out
Save this product for later
Devinci, E-Troy Lite Bosch SX Smart MX Eagle 70
Product Details
Brand: Devinci
UPC: 883385243763
GETTING YOU MORE ON EVERY RIDE - Handcrafted in Canada
Climb in a flash and descend in style with this next generation rig that combines Bosch wattage with the finesse and feel Devinci trail bikes are known for. You’ll sense the power delivered by a Bosch system that’s compatible with a range extender for longer days. More than anything, you’ll notice how subtle the difference is on the way down. An agile made-in-Canada chassis with mixed wheels and suspension kinematics brings the spirit of a Devinci trail bike to the world of power assist. The E-Troy Lite gives you more on every ride.
Tech Specs:
- FRAME - Aluminum Optimum G04
- HEADSET - FSA Orbit | 1.5 | Zero Stack
- SEAT CLAMP - Alloy CNC | 34.9mm
- SUSPENSION FORK - RockShox Lyrik | Rush RC | 160 | 44Offset
- REAR SHOCK - Rockshox Deluxe Select Debonair | 185x55 Trunnion
- HANDLEBAR - RaceFace Aeffect R35 | B:35mm | R:20mm | W:780mm
- STEM - V2 Pro | B:35mm | L:40mm | 0°
- SADDLE - SDG BELAIR Max eMTB
- SEATPOST - TranzX Dropper | 31.6mm | 1x Lever
- SEATPOST - TranzX Dropper 31.6mm 1xLever
- GRIPS - Devinci | w/lock-on
- FRONT BRAKE - SRAM DB8
- REAR BRAKE - SRAM DB8
- FRONT ROTOR - SRAM Centerline | 220mm
- ROTORS - SRAM Centerline | 200mm
- REAR DERAILLEUR - SRAM Eagle 70 12s
- REAR SHIFTER - SRAM Eagle 70 12s
- CRANKARM - SRAM GX Bosch | 165mm
- CHAINRING - Sram XX Eagle 34T Bosch EMTB
- CASSETTE - SRAM XS1270 T-TYPE | 12s | 10-52T
- CHAIN - SRAM Eagle 70
- CHAIN - SRAM
- FRONT RIM - V2 Comp 29 | 29mm inner | TR
- FRONT HUB - Formula DC-711 | Sealed | 6bolts | TA 15x110mm
- REAR HUB - Formula | DHT-148 | 6 Bolts TA 12x148 BOOST
- REAR RIM - V2 Comp 27.5 | 29mm inner | TR
- SPOKES - Sapim Stainless 14G w/Nylok
- FRONT TIRE - Maxxis Assegai | 29x2.5WT | 3C | EXO | TR | MaxxTerra
- REAR TIRE - Maxxis Minion DHR II | 27.5x2.5 | 3CT | EXO+ | TR
- REAR TIRE - Maxxis Minion DHR II | 27.5x2.5 | 3C | EXO+ | TR | MaxxTerra
- COMPUTER - BOSCH System controller BRC3100
- DRIVE UNIT - Bosch Performance Line SX
- DRIVE UNIT - Bosch Performance Line SX, 55NM, 600W
- BATTERY - Bosch CompactTube 400 | 36V | 400 Wh
Weight - 20.50 kg / 45.19 lb
*For a size medium complete bike, weight approximate and subject to change.
Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.
FRAME TECH SPECS
Rear travel 150 mm Front travel 160 mm Wheel size Mixed-Wheel (27,5'' rear & 29'' front) Rear tire clearance 27,5'' x 2.6” Rear hub spacing 12 x 148 Boost Max & min chainring clearance 38T - 32T Chainline 55 mm Derailleur hanger UDH™ Caliper mount 200 mm Post Mount Max rear rotor size 220 mm Seat tube diameter 31.6 mm ID / 34.9 mm OD Dropper post length S → 125 mm / M → 150 mm / L → 170 mm / XL → 200 mm Seatpost max insertion S → 225 mm / M → 250 mm / L → 275 mm / XL → 300 mm Headset Top ZS44 | Bottom ZS56 Cable routing Internal Rear shock dimension Trunnion | 185 x 55 mm Rear shock hardware Top NA | Bottom 35 x 10 mm Linkage bearing type Enduro™ double-lip sealed Fork dimensions Axle-to-Crown measurement 571 mm / Offset 44 mm Chain guide mount Low Direct Mount Drive unit Bosch Performance Line SX | Smart System Battery Bosch CompactTube 400 - 400Wh Speed sensor Type Rotor magnet & dropout sensor Frame material 6061-T6 Aluminum | Optimum G04
BOSCH PERFORMANCE LINE SX
German engineering in a Canadian-made frame. Weighing at 4.4 lbs (2.0 kg), Bosch’s newest and lightest drive unit yet, the Performance Line SX delivers 55 Nm of torque and has a maximum power output of 600 watts. To achieve its light weight, the motor is built around a magnesium housing. The Performance Line SX utilizes Bosch’s smart system, making it compatible with their app eBike Flow and, therefore, fully tunable for the rider’s preferences.
400 Wh BATTERY
Minimal profile, seamlessly integrated, and compact – these are the defining features of the Bosch CompactTube 400 battery hiding in the E-Troy Lite. Weighing approximately 1995 grams, this energy powerhouse delivers an impressive 400 watt-hours. With the latest battery cell technology, it stands out as the Bosch eBike battery with the highest energy density.
ADAPTED GEOMETRY
With their extra weight, eBikes generally feel more composed and faster while descending rougher terrain, and with the pedal assist they can get you up steep climbs you’d never think you’d be able to get to the top of. In short, e-MTB’s are generally faster. That’s why Devinci adapts the geometry of its e-MTB’s for the realities of e-Mountain biking. While maintaining similar reach numbers, e-MTB’s get a slightly slacker head angle for extra confidence while tackling demanding trail sections. The seat tube angle is steepened to help position the rider's body more towards the front of the bike, thus aiding in maintaining that extra speed and momentum while climbing.
BOSCH EBIKE FLOW APP
CONNECTIVITY
Bosch offers connectivity and customized riding experience through the eBike Flow App. Itinerary planning, personalize your riding modes, track your activity, synchronize your Strava, update your software…All at the tip of your fingers.
RANGE - UP TO 67 KM ON A SINGLE CHARGE
A full charge will get you approximately 2 hours of riding, 1000 meters of climbing, and an average range of 40 km. Using mainly the ECO mode, the battery will deliver up to 67 km of range. Using primarily the TURBO mode, the system will provide a range of approximately 28 kilometers. The average speed, the assist mode, the weather, the wind, the rider's weight, and the frequency of stops are all factors that play a role in the energy consumption of the battery.
MODES
The Bosch system of the E-Troy Lite is programmed with the following assist modes: ECO, TOUR+, eMTB, and TURBO.
ECO: Low level support with maximum efficiency for the greatest range.
TOUR+: Smooth incremental support for energy-saving riding and a natural riding experience for longer rides.
eMTB: Providing targeted support for eMTB riding and delivering power exactly when it's needed for an optimal ride experience.
TURBO: Maximum power support even at high cadences on steep climbs.
You May Also Like
On Sale
Rocky Mountain, Instinct Alloy Frame (No Shock) - 2023
Rocky Mountain, Instinct Alloy Frame (No Shock) - 2023
SKU 1001132ALU-13
was $1 649.00
Save 40%
$995.00
On Sale

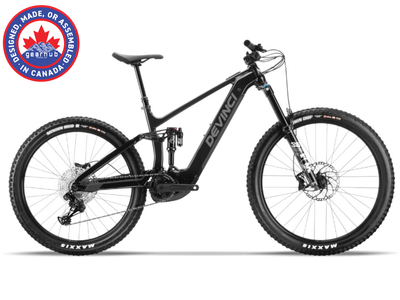

Devinci, E-Troy Bosch CX Smart NX
