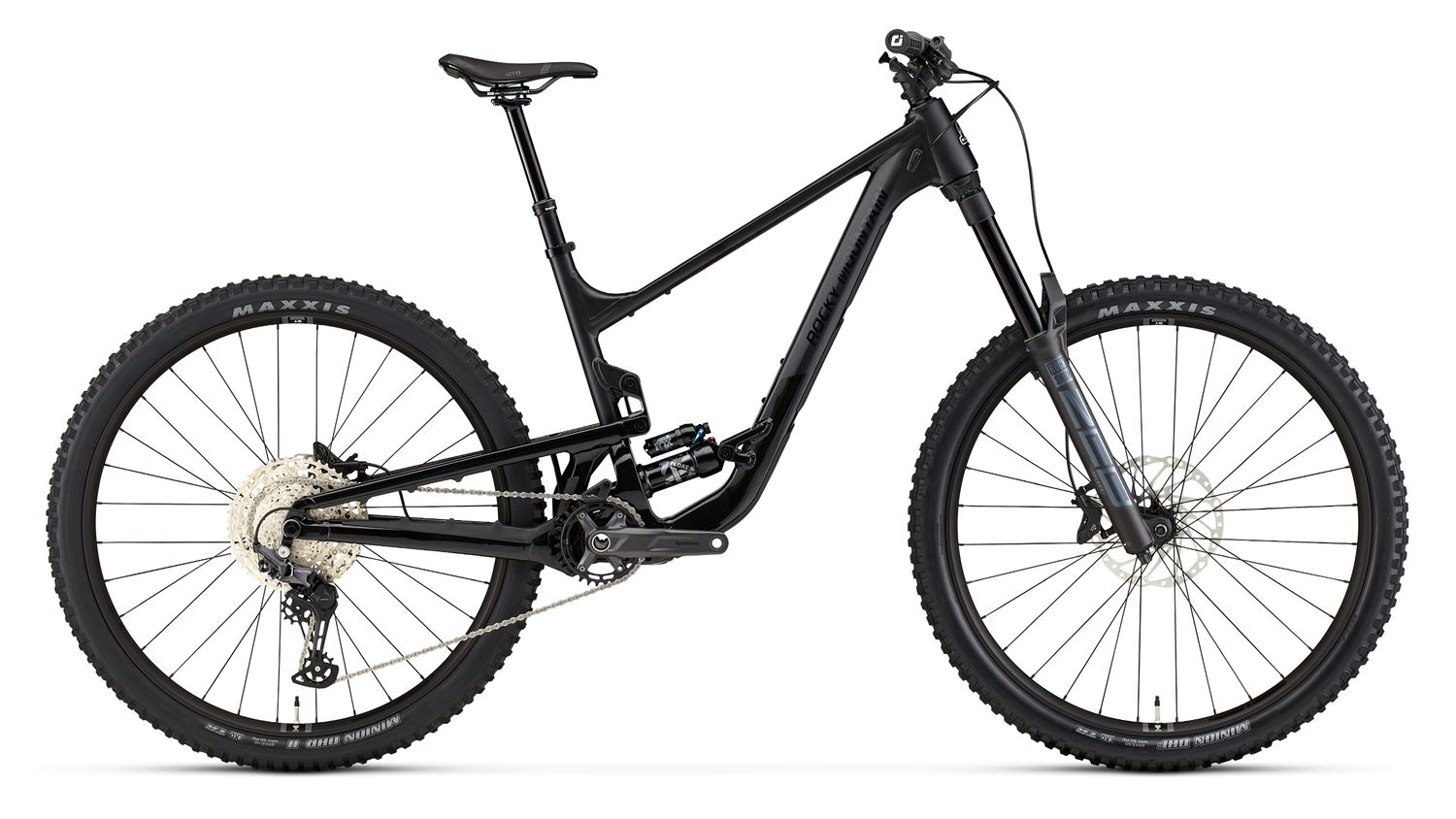

The all-new design makes the Altitude even faster than before. With increased stiffness and a lower centre of gravity, overall ride performance is leveled up. Its finely tuned rate curve and concentrated suspension mass let it handle bumps effectively, keeping the rear wheel glued to the ground under power. The linear rate curve provides a supportive and predictable feel with minimal unwanted movement or harshness. Mid to large-sized impacts are absorbed effectively without compromising speed or control.
| Frame | FORM™ Alloy | Full Sealed Cartridge Bearings | Threaded BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 160mm Travel | FORM™ Alloy Rear Triangle |
| Fork | RockShox Zeb RC 170mm | 27.5 = 38mm Offset | 29 = 44mm Offset |
| Front Travel | 170 |
| Shock | Fox Float X Performance | Sealed Bearing Eyelet | 40x10mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm | Size-Specific tune in FAQ |
| Rear Travel | 160 |
| Headset | FSA ZS56/66 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5"" Crown Race |
| Stem | Rocky Mountain 35 AM | 0° Rise | All Sizes = 40mm |
| Handlebar | Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp |
| Grips | ODI Elite Pro Lock On |
| Brakes | Shimano MT6120 4 Piston | Metal Pads |
| Shifters | Shimano Deore 12spd |
| Rear Derailleur | Shimano Deore 12spd |
| Cranks & Chainring | Shimano Deore | 32T | 24mm Spindle | Crankarm Length: SM = 165mm | MD - XL = 170mm |
| Bottom Bracket | Shimano Threaded BBMT501-B |
| Cassette | Shimano Deore 10-51T 12spd |
| Chain | Shimano M6100 |
| Front Hub | Shimano TC500 | 15mm Boost |
| Rear Hub | Shimano TC500 Boost 148mm |
| Rims | WTB ST i30 TOUGH TCS 2.0 | 32H |
| Tires | F: Maxxis Assegai 2.5 WT 3C MaxxGrip EXO+ Tubeless... |
| Seatpost | Tranz X +RAD2.0 Adjustable Dropper Post | 30mm Adj... |
| Saddle | WTB Solano Fusion Form 142 | Cromoly Rails |
