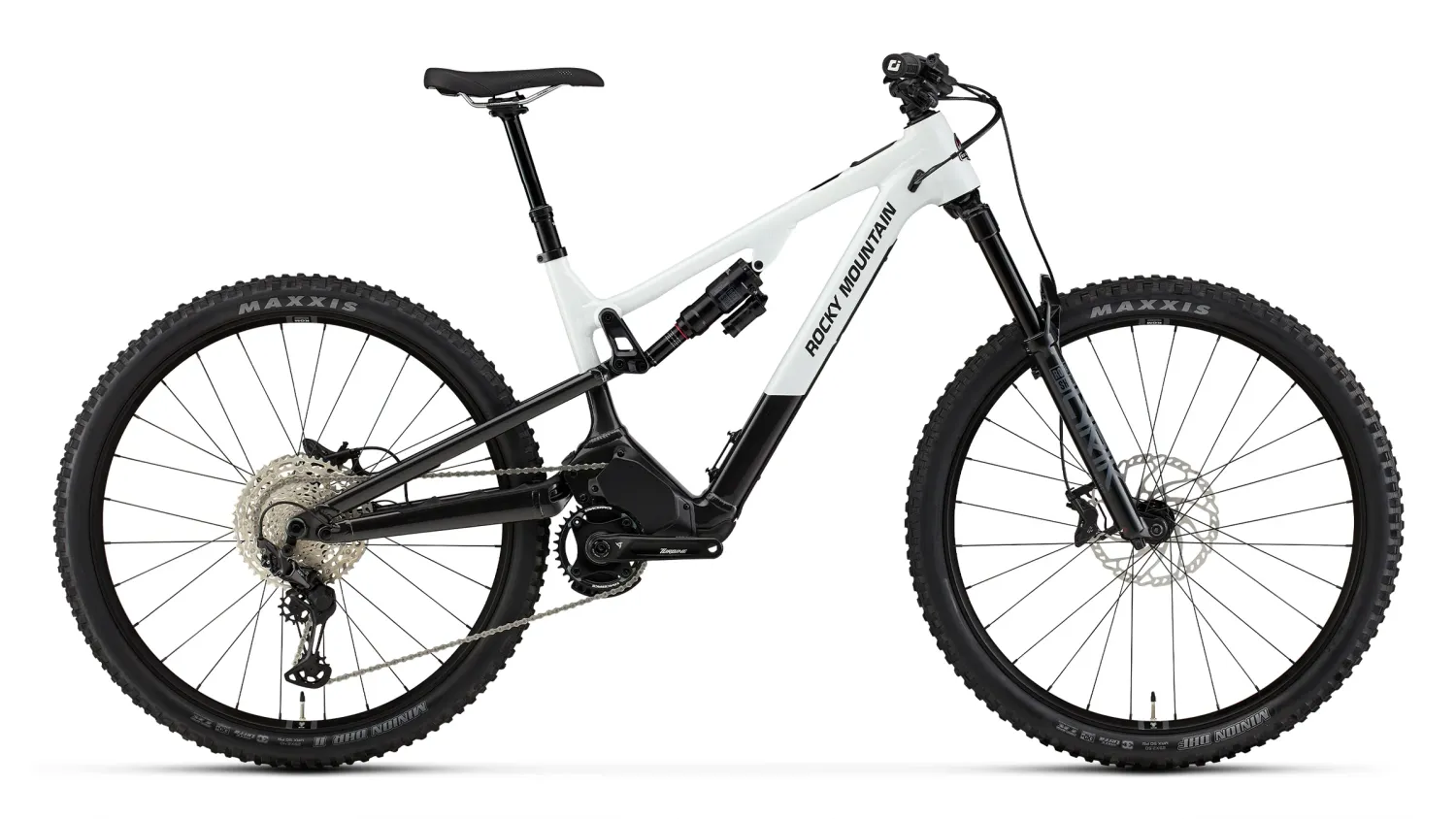

Rocky Mountain, Instinct Powerplay SL A50

The Instinct Powerplay SL packs a punch in a lightweight package. Powered by the all-new Dyname S4 Lite drive system, the Instinct Powerplay SL rides like a trail bike with the power to explore further than ever before.

Specifications

Frame Material	FORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry | 145mm Trave
Front Suspnesion Fork	RockShox Lyrik Select 160mm | Delta RC Damper | 27.5 = 37mm Offset | 29 = 42mm Offset
Rear Shock	RockShox Super Deluxe Select | Linear XL Air Can | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x55mm
Shifter	Shimano XT
Derailluer	Shimano XT
Cassette	Shimano Deore 10-51T 12spd
Chain	Shimano M6100
Crankset	Race Face Turbine Cinch | 34T Ring | 30mm Spindle | XS - XL = 165mm
Bottom Bracket	Race Face BB92 30mm
Front Brake	Shimano MT6120 4 Piston | Metal Pads
Rear Brake	Shimano MT6120 4 Piston | Metal Pads
Front Brake Rotor
Rear Brake Rotor
Front Rim	WTB KOM Trail i30 TCS 2.0 | 28H
Rear Rim	WTB KOM Trail i30 TCS 2.0 | 28H
Front Hub	Novatec D791SB Sealed Boost 15mm
Rear Hub	Novatec MTB SL Pro Boost 148mm
Front Tire	Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready
Rear Tire	Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready
Handlebar	Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
Headset	FSA ZS56/66 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race
Stem	Rocky Mountain 35 AM | 0° Rise | All Sizes = 40mm
Grips	ODI Elite Pro Lock On
Seatpost	Tranz X +RAD2.0 Adjustable Dropper Post | 30mm Adjustment | Alloy I-Spec EV Lever
Saddle	WTB Volt Race 142 | Cromoly rails
Drive System	Dyname S4 Lite Mountain Bike Drive | 250w Nominal Power | 700w Max Power | 75Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada
Battery	480 Wh Removable Integrated Li-Ion
Display	Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration
Charger	Rocky Mountain Powerplay Charger | 2A | 48V | Higo Deep Socket Connector

Frame & Geometry

Front travel	160 mm
Rear travel	150 mm
Wheel size	SM/MD/LRG/XL = 29" (Optional MX with frame flip chip)
Rear hub spacing	12 x 148 Boost
Chainline	55 mm
Derailleur hanger	UDH™
Caliper mount	200 mm Post Mount
Max rear rotor size	220 mm
Seat tube diameter	30.9 mm
Cable routing	Internal
Rear shock dimension	XS - SM = 190x45 mm | MD - LG - XL = 210x55 mm
Rear shock hardware	20x8 mm F Hardware

Technologies & Features

Motor Specs	700W Peak Power | 75NM Torque | 480Wh Battery Capacity
RIDE-4™ adjustment system	The RIDE-4™ adjustment system allows riders to quickly fine-tune their geometry with a single 6-mm Allen key. Four configurations are possible thanks to a pair of rotating chips. Please see the geometry chart for how each position affects the geometry. For adjustment instructions, please see the Frame Features section.
Sealed bearings at the shock eyelet	Your frame is equipped with cartridge bearings in the rear eyelet, allowing for better small-bump compliance.
Removeable battery	Remove your battery for the winter or for service if needed!
Reach-Adjust Headsets	All frames are equipped with reach adjust headsets to fine tune the reach. Installed on the frame is a 0mm / neutral headset. In the small parts box added with every frameset and complete bicycle, there is an additional set of 5mm headset cups that can be used to make reach adjustments. When reviewing the geometry chart with the 5mm offset cups installed, simply add or subtract 5mm from the Reach, Top Tube Length, and Wheelbase measurements to match the orientation of the cups. For installation instructions, please see the Frame Features section
5 years warranty, transferable to second owners	We believe in our products, that's why we offer 5-year warranty on our frames, extended to second owners.
MX Adjustment	The SM frame is equipped with 27.5” front and rear wheels while the MD-LG-XL frames are equipped with 29” front and rear wheels. The MD-LGXL frames can be setup with MX wheel setup (29 Front / 27.5 Rear) if desired without any additional frame parts required. The MX adjustment is made by changing the position of the lower link shock mount chip. With a 5mm Hex key, remove the rear shock bolt from the non-drive side and position the chips on each side in the correct position for the MX setting. If switching back to a 29” setting, install the chips in the 29 position. Refer to the diagram below for the correct positions.
