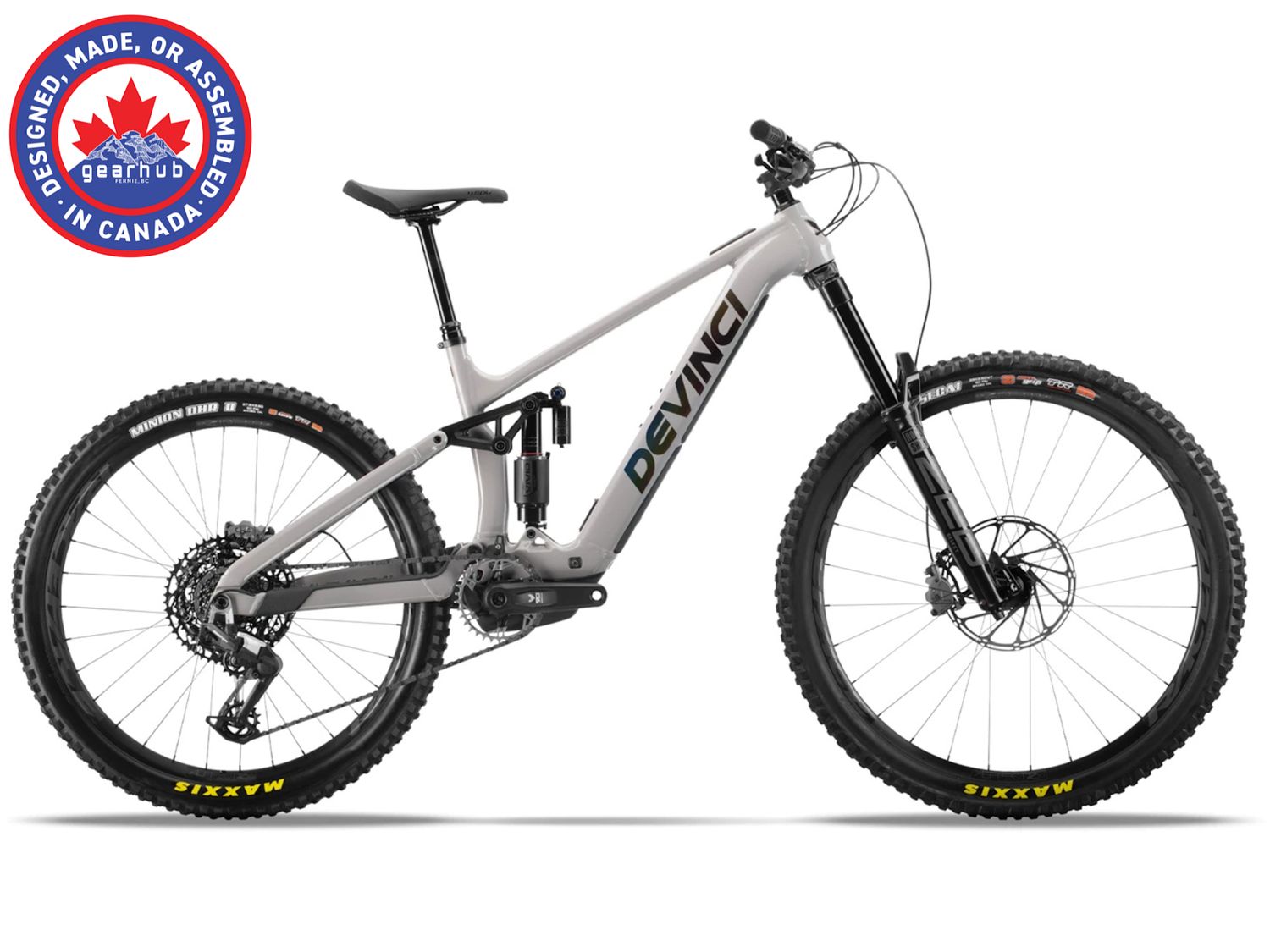

Devinci, E-Spartan Lite Bosch SX Smart MX Eagle 90

LIGHT ASSIST. BURLY CAPABILITY. Handcrafted in Canada

Big bike energy, now electrified. Tame the burly without holding back. The E-Spartan Lite is built to turn turbulence into confidence. Made in Canada and powered by German precision, its chassis hides Bosch’s Performance Line SX drive system and a 400Wh battery. With 165mm of rear travel and 170mm up front, a don’t-hold-back attitude, and Devinci’s lifetime warranty, the E-Spartan Lite is built to perform where it matters most…on burly territory.

Tech Specs:

• FRAME - Aluminum Optimum G04 165mm


• HEADSET - FSA Orbit | 1.5 | Zero Stack


• SEAT CLAMP - Alloy CNC | 34.9mm


• SUSPENSION FORK - Rockshox Zeb Select 29 | DB | 170mm | 15x110 | 44 Offset


• REAR SHOCK - Rockshox Vivid Select+ | 205x65T


• HANDLEBAR - V2 Pro | B:35mm | R:30mm | W:800mm


• STEM - V2 Pro | B:35mm | L:40mm | 0°


• SADDLE - SDG BELAIR Max eMTB


• SEATPOST - TranzX Dropper | 31.6mm


• SEATPOST LEVER - TranzX


• GRIPS - Devinci | w/lock-on


• FRONT BRAKE - SRAM Maven Bronze


• REAR BRAKE - SRAM Maven Bronze


• FRONT ROTOR - SRAM Centerline | 220mm


• REAR ROTORSRAM Centerline | 200mm


• REAR DERAILLEUR - SRAM Eagle 90 | 12s


• REAR SHIFTER - SRAM Eagle 90 | 12s


• CRANKARM - SRAM Eagle 90 Bosch | 155mm


• CHAINRING - Sram XX Eagle 34T Bosch EMTB


• CASSETTE - SRAM XS1270 T-TYPE | 12s | 10-52T


• CHAIN - SRAM Eagle 70


• FRONT TIRE - Maxxis Assegai | 29x2.5WT | 3C | DD | TR | MaxxGrip


• REAR TIRE - Maxxis Minion DHR II | 27.5x2.5WT | 3C | DD | TR | MaxxTerra


• FRONT WHEEL - RaceFace Aeffect R30 29 Boost110x15 | 30mm inner


• REAR WHEEL - RaceFace Aeffect R30 27.5 B148x12 HG | 30mm inner EMTB


• COMPUTER - BOSCH System controller BRC3100


• DRIVE UNIT - Bosch Performance Line SX | 55NM | 600W


• BATTERY - Bosch CompactTube 400 | 36V | 400 Wh


•













  Weight - 21.65 kg / 47.73 lb







  *For a size medium complete bike, weight approximate and subject to change.




  Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.









  FRAME TECH SPECS






































































































  Rear travel	165 mm
  Front travel	170 mm
  Wheel size	Mixed-Wheel (27,5'' rear & 29'' front)
  Rear tire clearance	27,5'' x 2.6”
  Rear hub spacing	12 x 148 Boost
  Max & min chainring clearance	36T - 32T
  Chainline	55 mm
  Derailleur hanger	UDH™
  Caliper mount	200 mm Post Mount
  Max rear rotor size	220 mm
  Seat tube diameter	31.6 mm ID / 34.9 mm OD
  Dropper post length	M → 170 mm / L → 200 mm / XL → 230 mm
  Seatpost max insertion	M → 270 mm / L → 300 mm / XL → 340 mm
  Headset	Top ZS44 | Bottom ZS56
  Cable routing	Internal
  Rear shock dimension	Trunnion | 205 x 65 mm
  Rear shock hardware	Top NA | Bottom 35 x 10 mm
  Linkage bearing type	Enduro™ double-lip sealed
  Fork dimensions	Axle-to-Crown measurement 586 mm / Offset 44 mm
  Chain guide mount	Low Direct Mount
  Drive unit	Bosch Performance Line SX | Smart System
  Battery	Bosch CompactTube 400 - 400Wh
  Frame material	Aluminium 6061-T6 | Optimum G04





















  MADE-IN-CANADA ALUMINUM FRAME







  Made from 6061-T6 aluminum tubes for superior durability, incredible stiffness and a knockout strength-to-weight ratio exclusive to Devinci bikes.




























































  Lifetime warranty




  The love of riding lasts a lifetime. Now your bike can too.






































  e-MTB optimized Split Pivot




  Separates acceleration forces from braking forces for a buttery smooth ride complemented by hyperactive small-bump compliance. Additionally, optimized kinematics keeps the e-bike suspension active, even when accelerating, for added torque and improved overall traction.






































  Dedicated mixed wheel size design




  Get all the snappy handling of 27.5" with the added traction, rollover and momentum of a 29" wheel up front.






































  Motor




  Bosch’s newest and lightest drive unit yet, the Performance Line SX delivers 55 Nm of torque and has a maximum power output of 600 watts.






































  400 Wh CompactTube 400 battery from Bosch




  A light and efficient 400Wh battery holds 30% more energy thanks to the 21700 cell technology. Its rugged design is purpose-built for the rigours of mountain biking.






































  Integrated Battery




  The battery is tucked inside the downtube, away from rocks and debris. This keeps your battery safe and shaves roughly 400g off the bike’s overall weight.






































  Wireless controler




  The thumb-actuated mini remote lets you adjust power settings without changing your hand position.






































  Frame-mounted charging port




  Recharge easily and efficiently with the frame-mounted charge port.






































  4A Charger




  Bosch's fastest charger. Provides a 50% charge in 1.5 h and a full charge in 3.5 h.






































  PowerMore 250




  250 Wh portable energy reserve : PowerMore 250 is the additional battery which is about the same size as a water bottle for even more range and longer-lasting trail fun.






































  Connectivity through Bosch eBike Flow App




  Bosch offers connectivity and customized riding experience through the eBike Flow App. Itinerary planning, personalize your riding modes, track your activity, synchronize your Strava, update your software…All at the tip of your fingers.






































  Internal cable routing




  The overall aesthetics of the chassis are kept clean and discreet.






































  Standard Boost 148




  Boost 148 design with a 55 mm chainline that offers ample tire clearance.






































  Frame protectors




  The chainstay and the lower part of the downtube are protected to enhance durability of the frame for the rugged ride ahead.






































  Motor shield




  Integrated nylon motor shield protects the motor from impacts and debris. The shield also has vents to help dissipate heat and let water drain.






































  Universal derailleur hanger UDH™




  Reduces the risk of destroying your derailleur and makes it easy to source replacement parts when you need them.






































  155mm Crank Arms




  Shorter crank arms for better ground clearance, smoother cadence, and improved efficiency on technical climbs.






































  31.6 seat post




  M : 170 mm | L : 200 mm | XL : 230 mm









  Max insertion length




  M : 270 mm | L : 300 mm | XL : 340 mm






































  Chainguide-equipped




  A discreet upper guide that keeps your chain in place.






































  Enduro™ bearings




  Enduro™ double-lip sealed bearings for precision movement and superior longevity.






































  Maximum rear tire clearance




  27.5 x 2.6






































  Room for a bottle




  All frame sizes have clearance for at least a 500 ml bottle with a rear shock with a reservoir.
